Description

NOAA Nautical Chart 16474: Bay of Islands;Aranne Channel;Hell Gate

The chart you are viewing is NOT updated weekly and does NOT include all of the latest Notice to Mariners corrections. Printed on-demand on water-resistant paper, this chart meets the definition of a nautical chart in SOLAS Chapter V Regulation 2.2 and satisfies carriage requirements in SOLAS Chapter V Regulation 19.2.1.4.

Available Versions

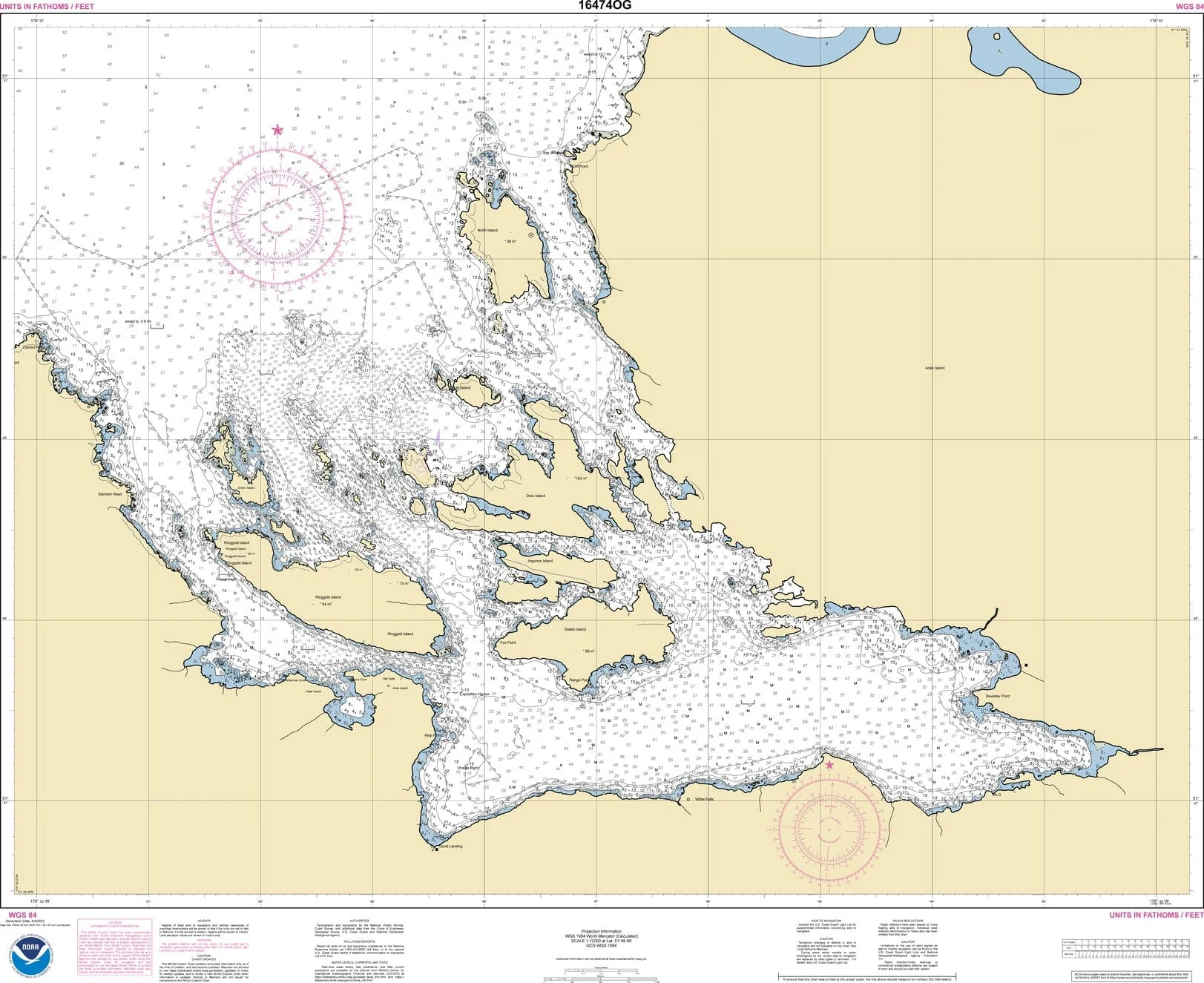

1. NOAA Custom Chart (For Navigation)

• Created using the NOAA Custom Chart (NCC) application.
• Contains all the up-to-date information found in ENCs.
• Printed directly from the NOAA Custom Chart Application.
• Navigation Ready – meets current standards for maritime navigation.
• [View in Nautical Chart Viewer]

2. NOAA Traditional Chart (Not for Navigation)

• NOAA announced in 2019 its plan to sunset Raster Nautical Charts.
• The Raster Chart sunset program was completed in December 2024.
• This traditional chart is no longer updated and is not suitable for navigational use.
• Retained for historical and reference purposes only.
• [View in Nautical Chart Viewer]

Printing & Material

• On-demand printing ensures the latest available version at the time of order.

• Water-resistant paper for durability in marine environments.

Additional Information

NOAA Custom Chart (Updated)
Scale: 12000
Paper Size: 36.0" x 43.0"
Actual Chart Size: 40.6" x 33.1"

Traditional NOAA Chart (Sunsetted)
Scale: 12,000
Paper Size: 36.0" x 44.0"
Actual Chart Size: 40.8" x 31.7"
Edition #: 9
Edition Date: 2015-03-01

Farewell to Traditional Nautical Charts
