Description

NOAA Nautical Chart 11402: Intracoastal Waterway Apalachicola Bay to Lake Wimico is a standard navigation chart used by commercial and recreational mariners alike. Printed on-demand on water-resistant paper, this chart meets the definition of a nautical chart in SOLAS Chapter V Regulation 2.2 and satisfies carriage requirements in SOLAS Chapter V Regulation 19.2.1.4.

Available Versions

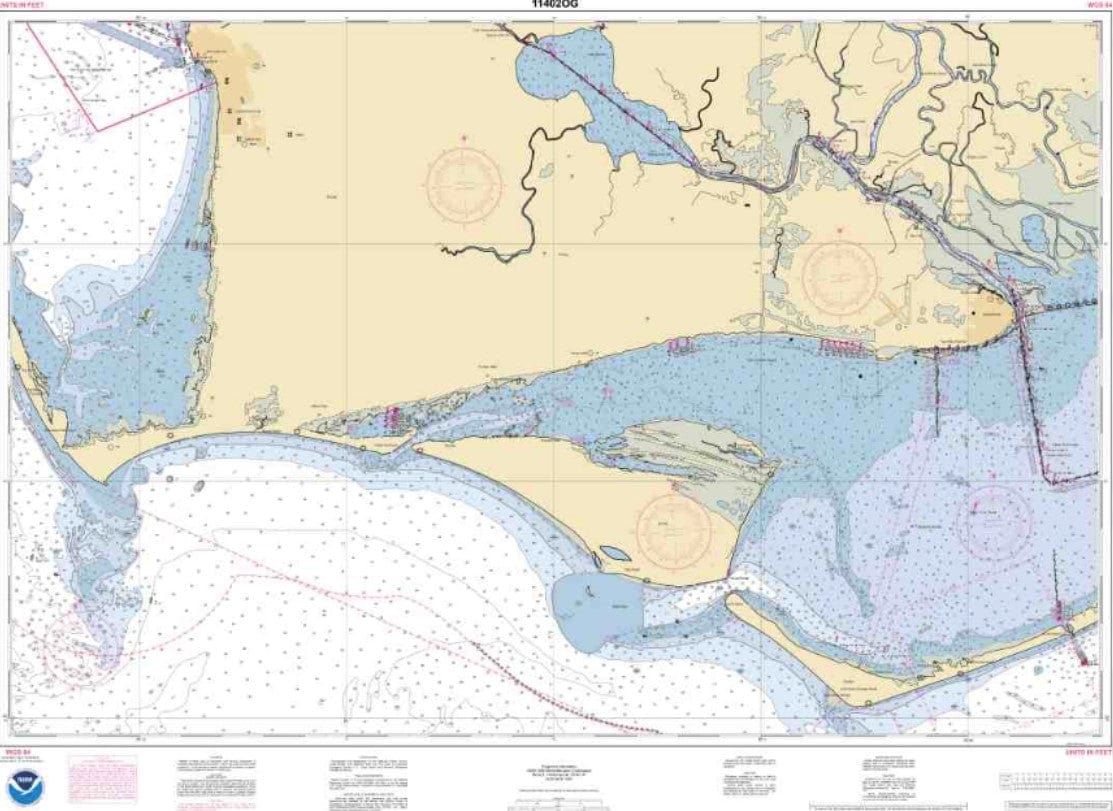

1. NOAA Custom Chart (For Navigation)

• • Created using the NOAA Custom Chart (NCC) application.
  • Contains all the up-to-date information found in ENCs.
  • Printed directly from the NOAA Custom Chart Application.
  • Navigation Ready – meets current standards for maritime navigation.
  • [View in Nautical Chart Viewer]

2. NOAA Traditional Chart (Not for Navigation)

• • NOAA announced in 2019 its plan to sunset Raster Nautical Charts.
  • The Raster Chart sunset program was completed in December 2024.
  • This traditional chart is no longer updated and is not suitable for navigational use.
  • Retained for historical and reference purposes only.
  • [View in Nautical Chart Viewer]

Printing & Material

• • On-demand printing ensures the latest available version at the time of order.

  • Water-resistant paper for durability in marine environments.

Additional Information

NOAA Custom Chart (Updated)
Scale: 40000
Paper Size: 36.0" x 45.0"
Actual Chart Size: 42.7" x 31.1"

Traditional NOAA Chart (Sunsetted)
Scale: 40,000
Paper Size: 36.0" x 47.0"
Actual Chart Size: 43.5" x 29.8"
Edition #: 24
Edition Date: 2020-02-01
